How to Set up Twitch Dual Format Streaming With Streamlabs Desktop

Everything you need to know about the new Twitch feature (in testing) that can help expand your reach on the platform.

Mika Robinson

System Requirements

Below are the current minimum requirements for the Twitch Dual Format feature.

GPU and Driver Version:

NVIDIA GeForce RTX (3070 or better) or better
AMD Radeon RX 6000 (6600 or better) for 1080p dual format streams.
We recommend AMD Radeon RX 7000 series (7600 or better) for dual format streams in 1440p.

Operating System: Windows 10/11

Vertical Canvas: 1080x1920

How to Use Twitch Dual Format with Streamlabs Desktop

Once you have beta acces from Twitch, follow the instructions below to use the feature within Streamlab's Preview build.

Step 1: Download Streamlabs Desktop preview build here.

Step 2: Launch and log in with your Twitch account. Only allowed accounts will be able to use this feature for now.

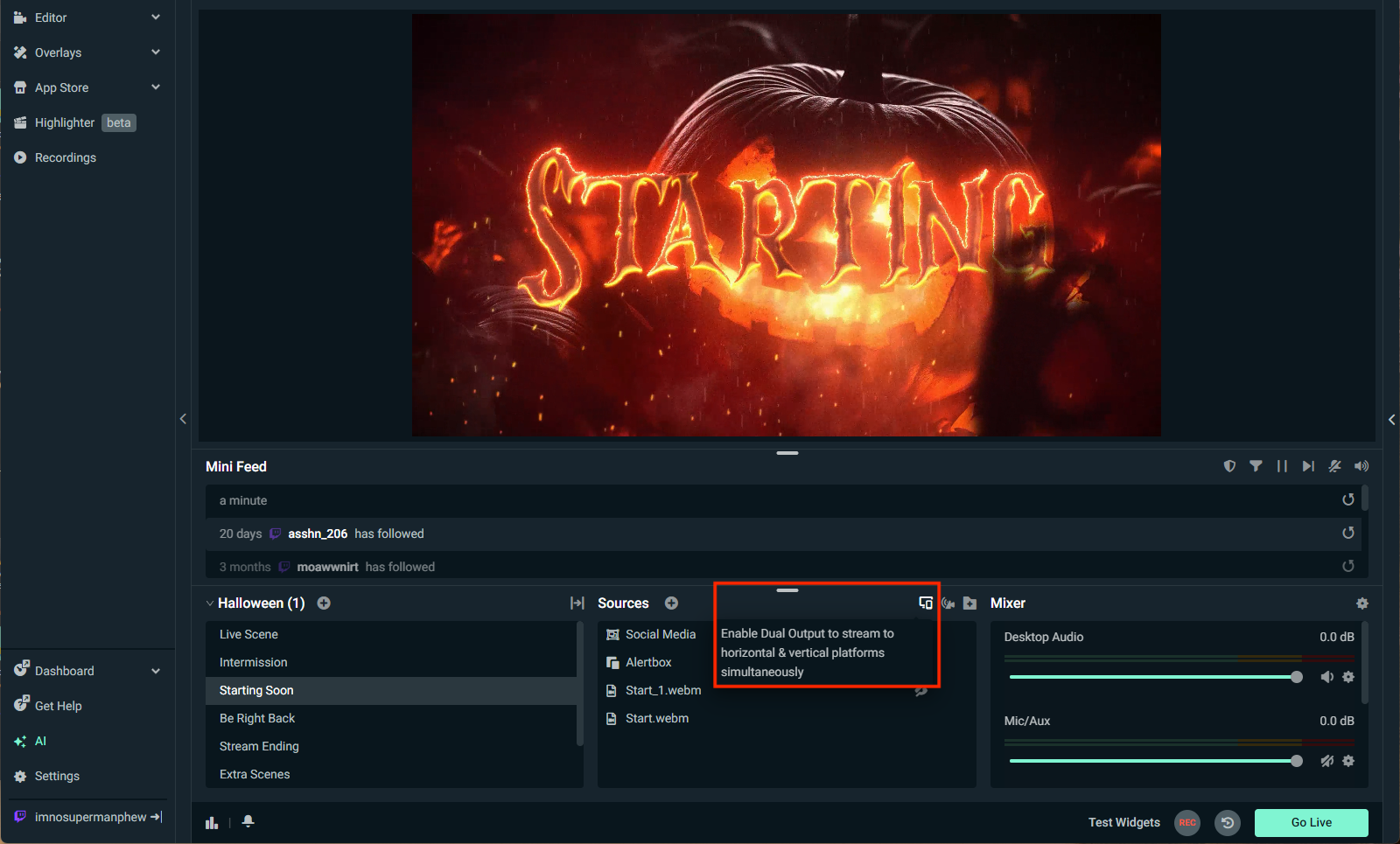

Step 3: Toggle on Dual Output. You can do this right from the editor window in Streamlabs Desktop.

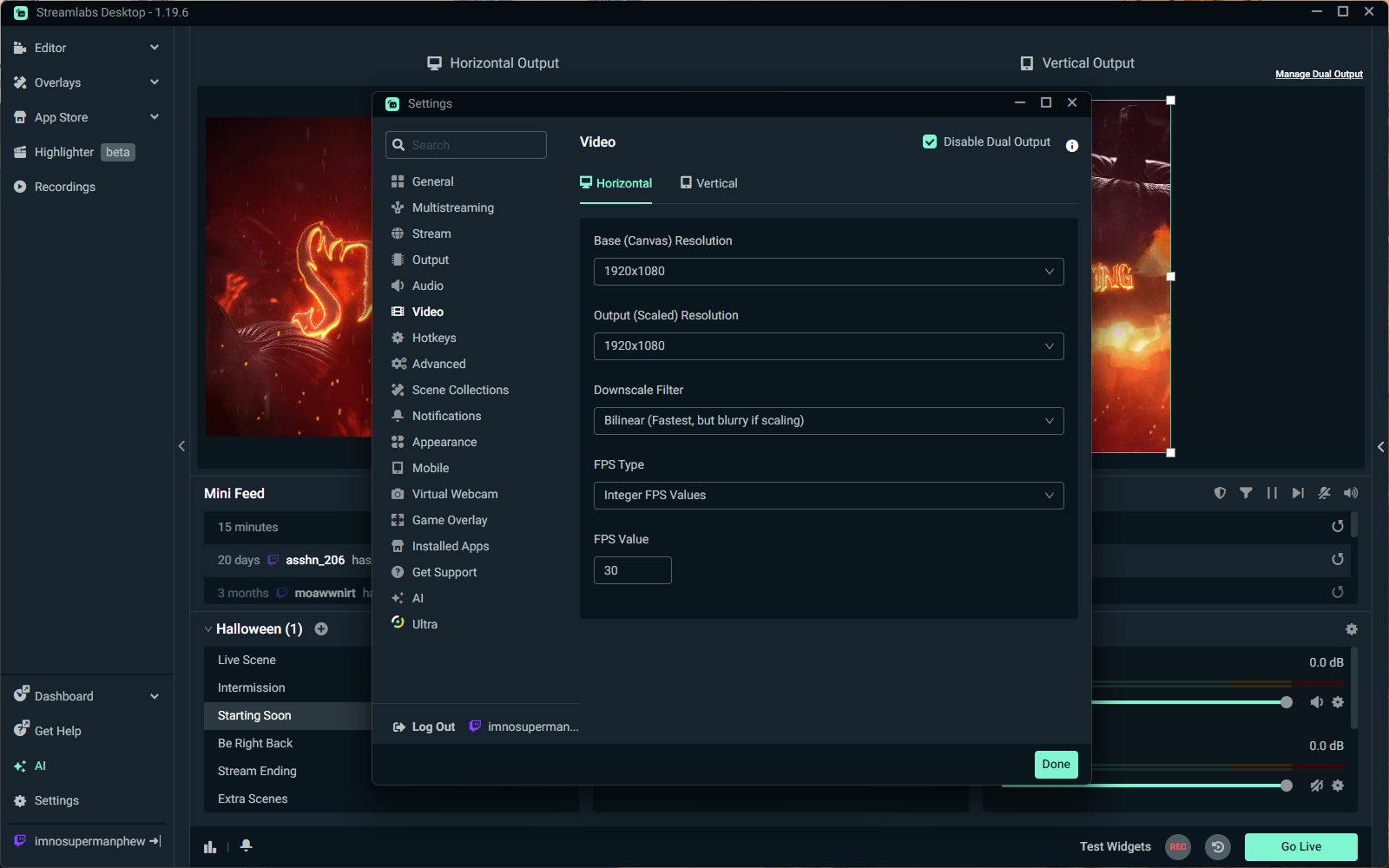

Step 4: Head to Settings > Video to set up your resolution and FPS for each canvas. Click Done when you're finished.

Step 5: Adjust your sources within the Editor by displaying or hiding what you wish viewers to see. Resize elements to make sure nothing important is cut off in either view.

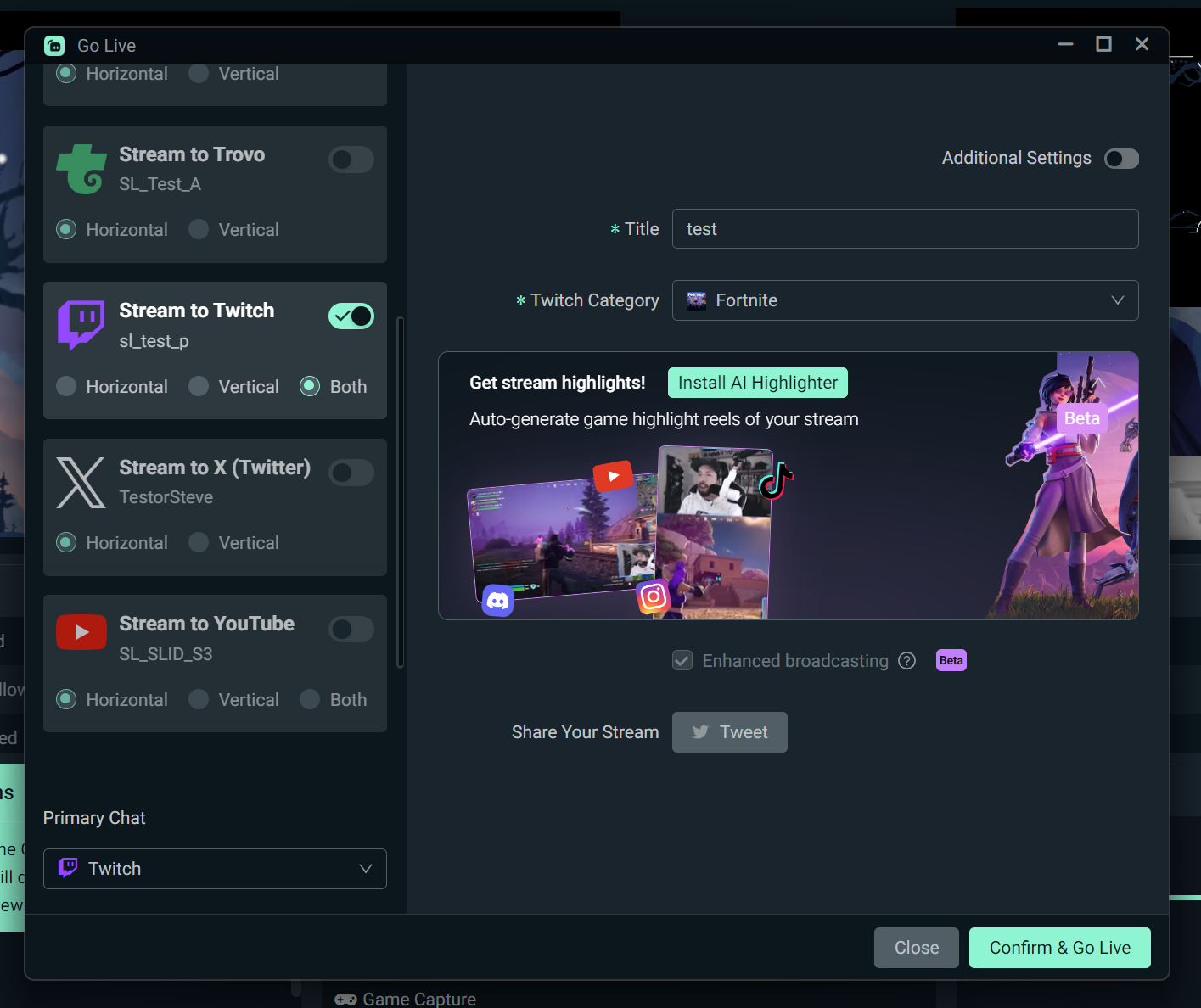

Step 6: When you're ready to livestream, click Go Live. Make sure Twitch is selected as your destination, toggling on both options to stream vertically and horizontally.

Note: During this initial testing phase, you can only stream to Twitch when both orientations are selected.

Step 7: Next, click Confirm and Go Live!

Step 8: Both stream layouts will broadcast simultaneously to Twitch. We recommend doing a test stream—watch your stream on a mobile device to preview your vertical stream and ensure all key elements display properly.

Please note: Mobile viewers will see a pop-up letting them know that this feature is still in Beta when they enter your vertical stream. They can switch back to the classic view by clicking the button when prompted.

Web viewers will not be notified that you are participating in this Beta.

Mobile phone showing Alpha notification for dual format streaming

Step 9: Use inspector.twitch.tv to monitor performance. Streaming both formats requires more resources, so watch your CPU/GPU load and adjust as needed.

Things You Should Know

Dual Format is still in testing, so there are some limitations, including that Twitch features may not be available at the moment, such as:

You will only be allowed to stream to Twitch (no other platforms) when the "both" option is selected.
System requirements for this feature are still being tested. Keep in mind that you may experience some hiccups. Be sure to report any issues to help us improve the feature.
Some features and design elements may not be available to viewers watching in the vertical format. However, those watching in classic view on mobile or web should not encounter these issues. We're working diligently to ensure the viewing experience matches across formats.
Vertical VODs will not be available during the initial testing phase.
Chat overlay will not be available in the Beta testing experience on mobile when rotating the device to landscape mode. However, it will still be available in classic view on mobile.
Details for features such as Shared Chat and Stream Together
A few default channel point rewards aren't visible in the mobile vertical view on Android, but don't worry-all your custom rewards are still available.
